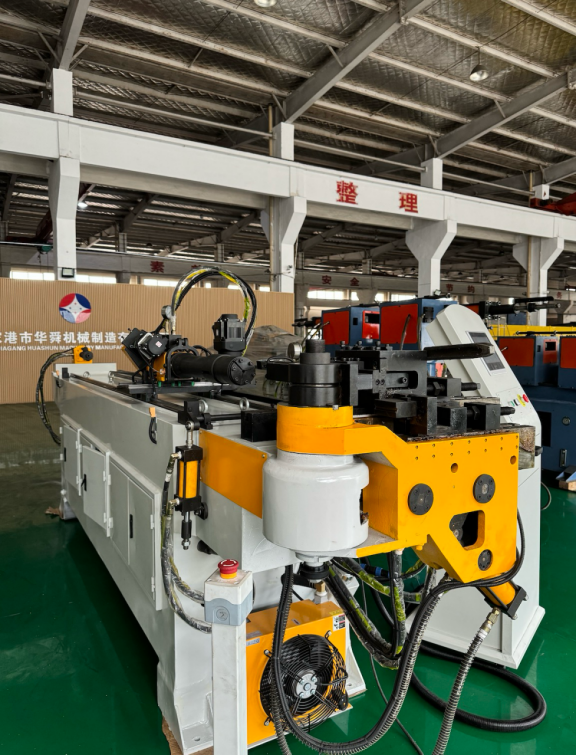

A Closer Look at Our Most Powerful Pipe Bending machine-SB-50CNC-2A-1S

Common Questions

In the world of metal fabrication, the pipe bending department is often the bottleneck. Inconsistencies, slow setup times, and the high skill requirement for operators create a cascade of inefficiencies: wasted materials, costly rework, missed deadlines, and squeezed profit margins. You’ve likely accepted these as the "cost of doing business."

Profile

The fully automatic CNC Pipe Bending Machine adopts servo, hydraulic pump and air cylinder driving modes according to different servo axes.Huashun Tube Bending Machine realizing the high-speed, high-precision and high-yield processing requirements of 3D pipe fittings. CNC Tube Bender can meet almost harsh pipe bending requirements.Optional 3D simulation software can effectively avoid interference in the pipe bending process; strong pushing can achieve the minimum clamping length and the minimum bending radius, and can also complete the push-bending forming of any arc, realizing the function of one machine for multiple uses and small batch error. Huashun CNC Tube Bender is widely used in aerospace, military industry, automobile manufacturing and other pipe processing industries.

Main Technical  Parameter

Full automatic and cost effective Pipe Bending Machine
Equipped with 3 programmable axis.
Feeding: servo motor
Rotation: servo motor
Bending mode have two choices: a.hydraulic pipe bender, b.Servo CNC Tube bender way
Hydraulic pressure die assist for every bending stack
Mandrel lubricating system
Wiper die,clamping die and pressure die seats
Centralized greasing system for moving areas
Electric cabinet cooling fan
Touch screen system of PLC

Fields of application

The SB-50CNC-2A-1S is the versatile heart of any modern fabrication shop, perfect for:

Automotive: Exhaust systems, roll cages, fluid lines.

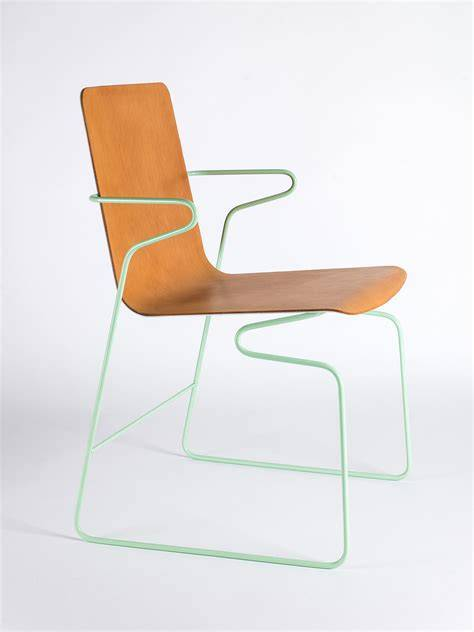

Furniture: Chair frames, table bases, architectural elements.

Aerospace: Hydraulic tubing and structural components.

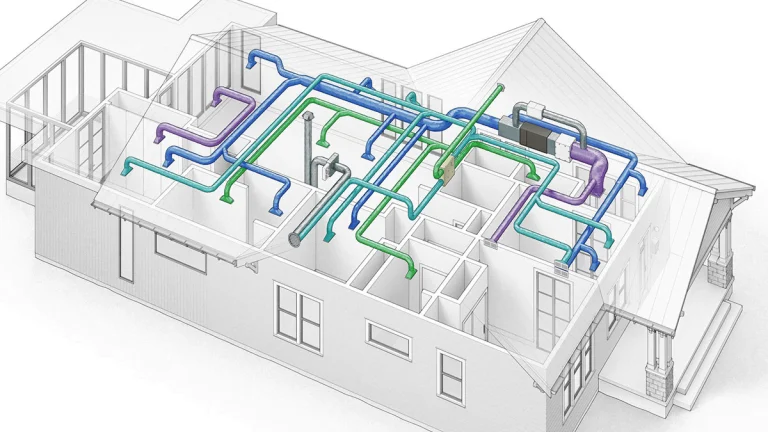

HVAC: Complex ductwork and refrigerant lines.

Core Features of Automatic Pipe Bending Machines

1.High Precision & Repeatability
Utilizes servo motors and closed-loop control for consistent accuracy, achieving bend tolerances within ±0.1°.

2.Efficiency & Automation
Fully automated processes (feeding, bending, unloading) reduce labor dependency and boost productivity by up to 300%.

3.Versatility & Flexibility
Handles complex 3D bends and diverse materials (e.g., carbon steel, stainless steel, copper) with quick program switching.

4.Superior Forming Quality
Advanced tooling (mandrels, wiper dies) prevents wrinkles, ovality, and surface defects for smooth, defect-free bends.

5.User-Friendly Operation
Intuitive CNC interfaces with 3D simulation and offline programming simplify setup and reduce training time.

See our IPC simulation video.
