The Core of Fitness Equipment Manufacturing: Tube Processing Technology and Huashun Solutions
author: Huashun Machinery
2026-06-09
From Structure to Aesthetics: Tube Processing Defines Quality
In fitness equipment manufacturing, the design of the frame directly affects user experience and product lifespan. Whether it's commercial equipment for professional gyms or the increasingly popular foldable home gear, tubes are the most fundamental building blocks. As a result, processes like tube bending, cutting, punching, and end forming have become increasingly essential in this industry. A simple dumbbell rack is actually the result of precise profile bending and assembly welding. The upright of a treadmill often comes from multiple bends in an oval or rectangular tube. The quality of tube processing determines the mechanical strength, visual appeal, and safe service life of the equipment.
Four Key Aspects of Tube Processing
Modern fitness equipment manufacturing demands high performance in tube processing. First, bending accuracy and surface finish: Whether it's the smooth curve of a main frame or the handle arc on a multi station machine, precise draw bending or roll bending is required to avoid wrinkles, flattening, or cracks while maintaining uniform wall thickness. Second, end forming quality: Swaging, expanding, or punching operations efficiently create precise connection ends or pre drill holes for locating pins and bolts. Third, efficient cutting, slotting, and drilling: Accurate cutting and hole positioning are prerequisites for proper welding alignment and for preventing rattling or misalignment during use. Fourth, versatility across different tube shapes and sections—round, square, oval, special sections, angle steel, flat bar—the machine's ability to handle quick changeovers directly impacts production flexibility.
Huashun’s Comprehensive Coverage of the Fitness Equipment Industry
Since its founding in 2000, Huashun Machinery has accumulated extensive technical experience in tube processing. The company’s product line covers over 60 models in eight major categories, including tube benders, cut off machines, swagers, chamfering machines, punching machines, plate rollers, saw blade sharpeners, and riveting machines. These are widely used in aerospace, automotive, motorcycles, fitness equipment, steel furniture, leisure products, HVAC, plumbing, and sanitary ware. In the fitness sector, Huashun equipment handles round, square, rectangular, and oval tubes, meeting diverse requirements from commercial to home fitness gear.
Long Stroke and Batch Bending – One-Step Frame Forming
Large fitness equipment frames—such as the uprights of multi-station trainers or double-column supports—often require multiple bends on a single long tube. Huashun CNC tube benders support both XYZ coordinate programming and YBC working-value programming, accommodating different operator preferences. The 10-inch touchscreen displays the 3D bending process in real time, making programming intuitive. The machine can store thousands of part programs for one-click recall during changeover. Feeding accuracy is ±0.1mm, and bending accuracy is ±0.1°. Even for complex frames with multiple bends on long tubes, the first and last parts remain highly consistent. For high-volume, symmetrical components like exercise bike handles or weight rack crossbeams, Huashun’s twin-head benders can bend both ends simultaneously, processing multiple tubes in one setup and significantly reducing cycle time.
High-Efficiency Cutting and Precision Hole Making – Laser and Dedicated Cut-Off Solutions
Laser tube cutters are widely used in the fitness equipment industry because of their non-contact cutting, high precision, and high efficiency. Laser cutting can quickly produce various hole shapes, slots, and end preparations on tubes—burr-free, slag-free, and with high dimensional accuracy—all in one setup. For high-volume fixed-length cutting, Huashun’s fully automatic CNC cut-off machines use servo feeding combined with hydraulic cutting. Single feed length can reach up to 1500mm, and multiple tubes can be cut simultaneously, greatly increasing material-preparation efficiency. The cut surface is smooth, eliminating the need for secondary deburring.
Oval Tubes, Large Radii, and Compact Design

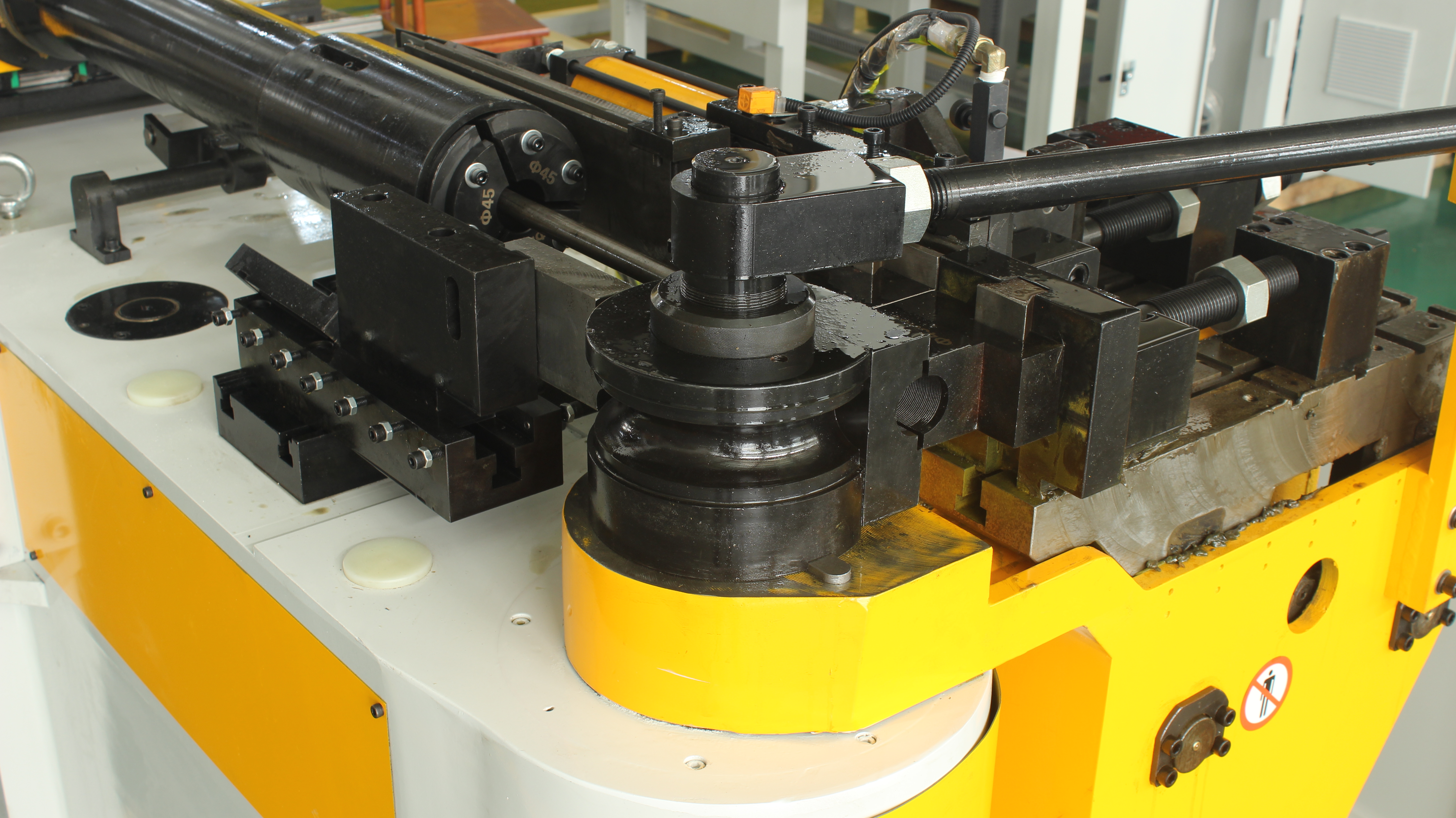

As home fitness equipment increasingly emphasizes compactness, foldability, and aesthetics, the flexibility of tube processing machines has become crucial. Huashun benders feature multi-stack tooling that allows three or more different radii to be bent on the same tube in a continuous sequence – ideal for complex curves on exercise bike handles or elliptical trainer swing arms. For special-section tubes like oval or rectangular profiles, Huashun equipment can quickly adapt with dedicated tooling, producing symmetrical shapes reliably and meeting the design philosophy that blends functionality with aesthetics in home fitness gear. The all-gear transmission and hydraulic control work together, providing ample output torque and rigidity when processing variable diameter tubes or large-radius bends, preventing material deformation or excessive springback.
Solving the Two Major Bending Challenges: Springback and Elongation
Material properties inevitably vary between different batches of tubes, causing changes in springback angle and elongation after bending. Huashun CNC benders include a built in material property library. The operator simply enters the material type, grade, and wall thickness, and the system suggests an initial springback compensation value. After the first bend, the actual angle and arc length are measured, and the system allows one click correction and locking of the compensation parameters. Subsequent parts automatically use the corrected values, eliminating the time and material waste of repeated trial bends.
Ability to Handle Hard and Thick-Walled Materials
Commercial fitness equipment often uses high-strength or thick-walled steel tubes to meet higher load-bearing requirements, posing a serious test of torque and rigidity. Huashun CNC benders use an all-gear mechanical drive structure with high-power servo motors. Even when bending thick-walled tubes or high-rigidity stainless steel, they deliver stable, ample bending torque. Moreover, the robust frame and high-rigidity spindle design prevent cumulative errors from long-term heavy-duty processing, ensuring dimensional stability in batch production.
Multi-Process Integration – From Tube to Frame, Seamlessly
Fitness equipment production should not be a pile of isolated machines. Huashun offers a one-stop combination of equipment – from cutting and bending to end forming and punching. For example, a treadmill base frame needs to be cut to length, then have its ends flattened (swaged) for sleeve assembly, then bent to the main curve, and finally have locating holes punched at pre-set positions. Performing all these processes on equipment from the same supplier greatly reduces workpiece transfer time between workshops and minimizes welding misalignment and assembly rework caused by interface inaccuracies – achieving efficient transformation from “a single tube” to “a complete frame.”
Conclusion
Whether it’s the demanding requirements for durability and precision in commercial fitness equipment or the pursuit of aesthetics and compactness in home gear, Huashun Machinery can provide suitable tube processing solutions. From bending and cutting to end forming and punching, Huashun embeds decades of tube processing experience into every machine, ensuring that the bending angle, cut length, and hole position of every part meet batch production standards.
Tube Processing Defines Quality – Huashun Equipment Sets the Standard.
