MC-405CNC-3A Fully Automatic Aluminum Cutting Machine: Servo Feeding and Integrated Cutting
author: Maquinaria Huashun
2026-10-14
Aluminum cutting is an important step in many manufacturing processes, where consistent feeding, reliable positioning, and stable sawing help prepare materials for subsequent production. For manufacturers handling repetitive cutting tasks, integrating these operations into one machine can simplify the workflow and reduce manual intervention.

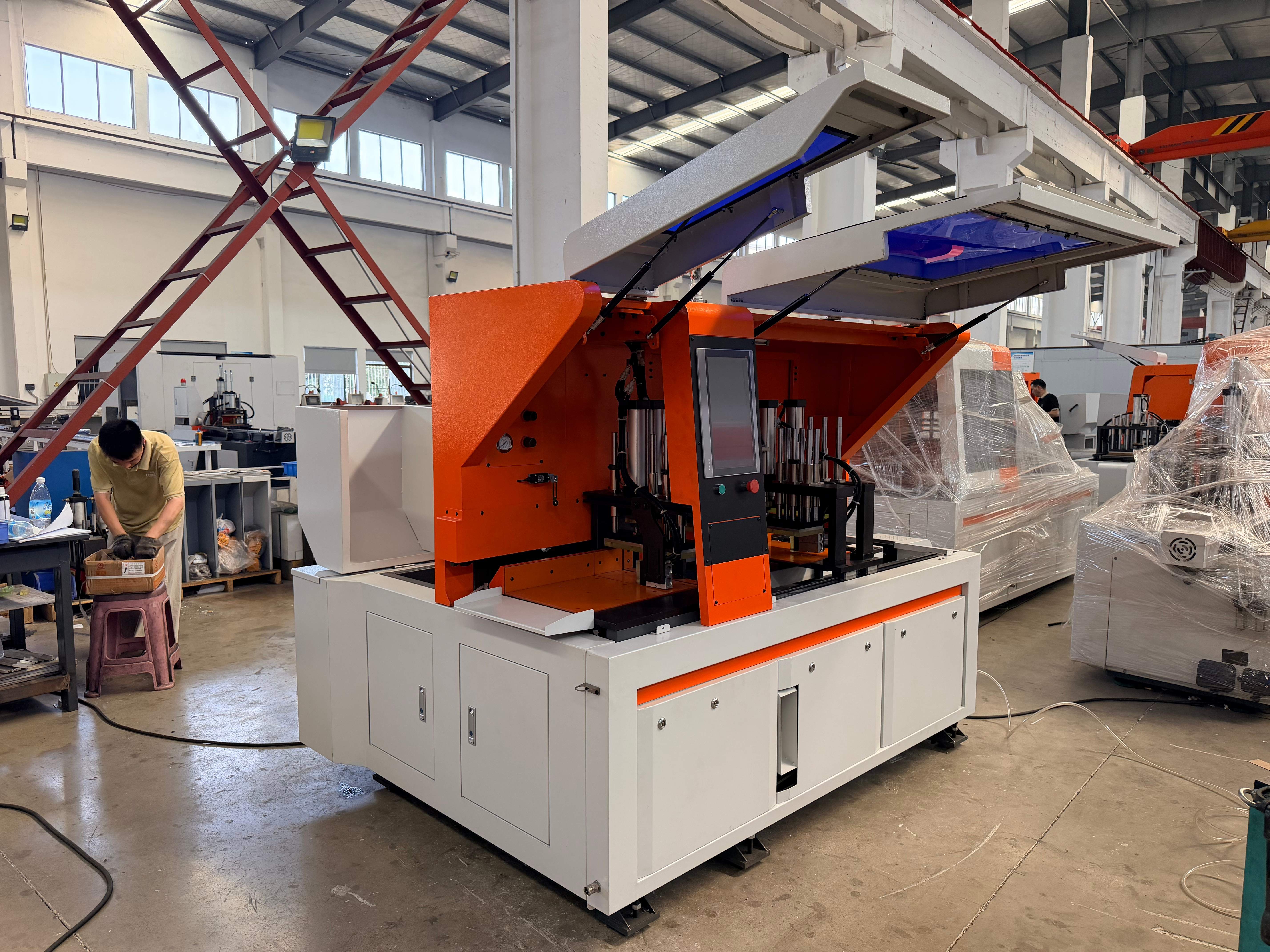

Huashun Machinery's **MC-405CNC-3A Fully Automatic Aluminum Cutting Machine** combines automatic feeding, positioning, cutting-oil spraying, sawing, and material separation in one system. With servo-driven feeding and blade movement, a PLC control system, and a touchscreen interface, the machine is designed for automated aluminum cutting operations.
Huashun Machinery's **MC-405CNC-3A Fully Automatic Aluminum Cutting Machine** combines automatic feeding, positioning, cutting-oil spraying, sawing, and material separation in one system. With servo-driven feeding and blade movement, a PLC control system, and a touchscreen interface, the machine is designed for automated aluminum cutting operations.
An Integrated Workflow from Feeding to Material Separation
The MC-405CNC-3A integrates several operations into a coordinated cutting process. Material is fed into position, clamped, cut by the saw blade, and separated automatically. This arrangement reduces the need for operators to handle each stage individually and helps organize repetitive cutting work.
The machine uses a servo feeding system with a maximum single feeding stroke of 800 mm. Its feeding mechanism is driven through a ball screw, supporting controlled material movement and positioning. A 3-meter infeed conveyor provides space for material loading before it enters the cutting area.
The machine also features servo-controlled material separation during blade retraction and a servo tail-pulling mechanism. Together, these functions support the machine's automated material-handling process.
Servo-Driven Sawing and Clamping

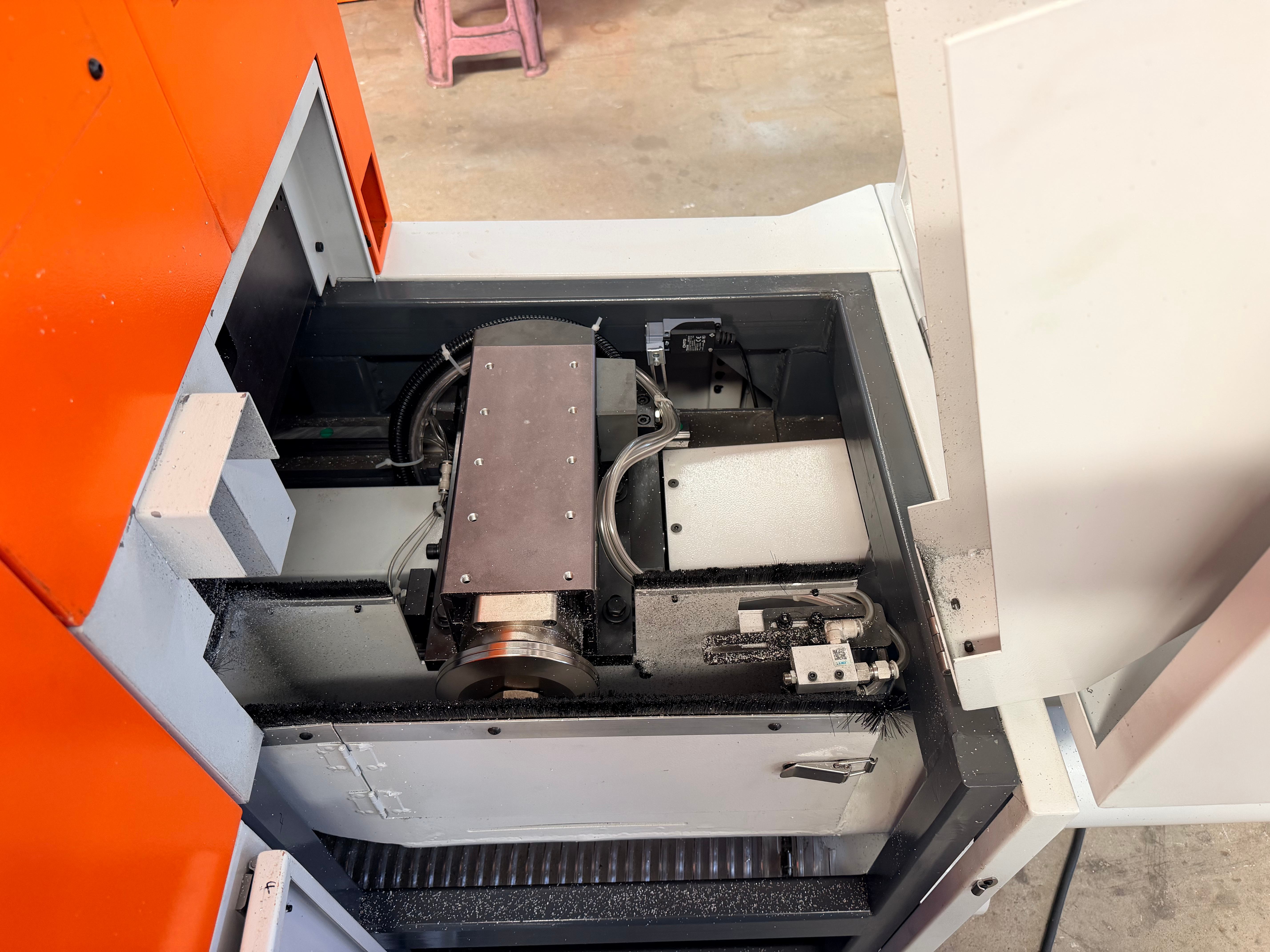

The cutting mechanism uses horizontal blade feeding driven by a servo motor. This configuration provides controlled blade movement during sawing, while the main spindle is powered by a 7.5 kW permanent magnet servo motor.

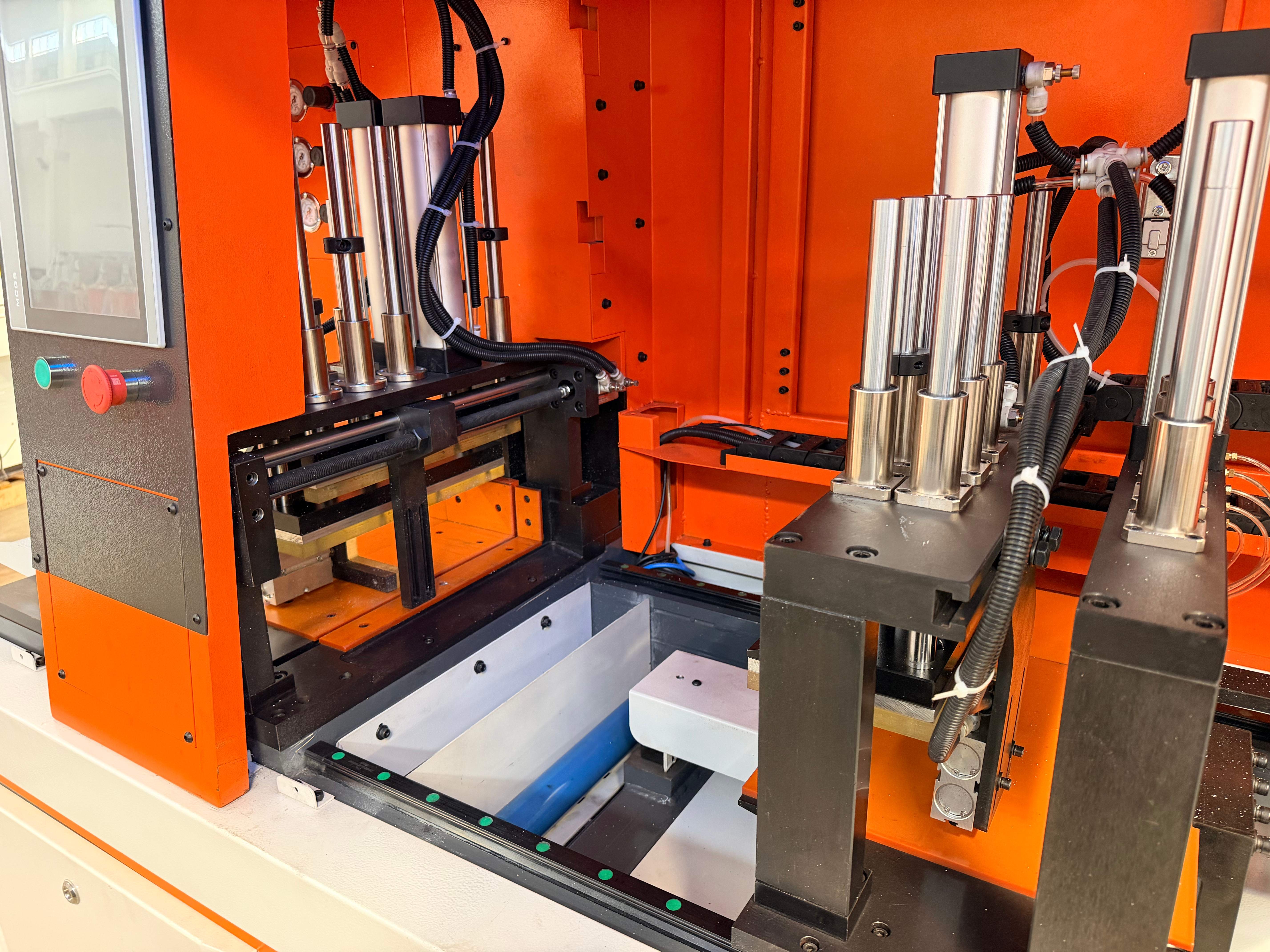

For workpiece holding, the machine adopts vertical pneumatic clamping combined with horizontal side clamping. The clamping arrangement helps secure the material during cutting.
The machine is designed for 90-degree cutting, with a maximum cutting height of 120 mm and a maximum cutting width of 320 mm. It supports compatible saw blades with outer diameters of 355–405 mm and a 30 mm bore. Actual cutting suitability depends on the workpiece dimensions and the selected cutting conditions.
Cutting-Oil Spraying and Chip Management
Cutting conditions can affect both the sawing process and saw blade service life. The MC-405CNC-3A is equipped with a vacuum-injector system that uses the vacuum-generation principle to atomize cutting oil into a fine mist.
This system provides lubrication and cooling during cutting. It also helps prevent chips from accumulating on the saw blade, supporting cutting consistency and extending blade service life.
A 4 kW dust collector is specified for the machine, with the brochure noting that its configuration can depend on actual requirements. This provides an option for managing dust and debris around the cutting process.
PLC Control and Production Information
The MC-405CNC-3A uses an Inovance PLC and a 14-inch Kinco smart HMI touchscreen. The interface allows operators to interact with the machine's control system during production.
The machine can automatically record production information, including processing time and quantity for each operation. These records provide a reference for production reporting and cost calculation.
The system can also detect when material is depleted during processing. A tailstock-length setting function can be customized according to the application, providing flexibility for different material-handling requirements.
Main Technical Specifications
The MC-405CNC-3A is equipped with servo-driven feeding, blade movement, and tail pulling. Its principal specifications are listed below.
- Model:MC-405CNC-3A
- Machine type:Fully automatic aluminum cutting machine
- Main servo motor power:7.5 kW
- Feeding system:Servo feeding
- Maximum single feeding stroke:800 mm
- Infeed conveyor length:3 m
- Maximum cutting height:120 mm
- Maximum cutting width:320 mm
- Cutting angle:90°
- Spindle speed:1–2,900 rpm
- Compatible saw blade: Ø355–Ø405 mm, bore Ø30 mm
- Power supply: 380 V, 50 Hz
- Control system:Inovance PLC
- Touchscreen:14-inch Kinco smart HMI
A Fully Automatic Solution for Aluminum Cutting
By integrating material feeding, positioning, pneumatic clamping, servo-driven sawing, and material separation, the Huashun MC-405CNC-3A provides an automated approach to aluminum cutting. Its cutting-oil spraying system, touchscreen control, and production-recording functions further support day-to-day operation.
For manufacturers evaluating automatic aluminum cutting equipment, the machine's feeding range, cutting dimensions, blade compatibility, and material-handling requirements are important factors to consider when determining whether it fits a particular production process.
Huashun Machinery provides tube and metal processing equipment for different manufacturing requirements. Contact our team to discuss the MC-405CNC-3A and confirm its suitability for your aluminum cutting application.
