Huashun Serpentine Tube Bending Machine – Built for Efficient Heat Exchanger Production
author: Huashun Machinery
2026-06-17
If you've ever looked inside a power plant boiler, a heat exchanger, or a chemical reactor, you've probably noticed long tubes bending back and forth in a continuous wave pattern. These are serpentine tubes, and they play a key role in transferring heat and carrying fluids in many industrial systems.
Although they look simple, manufacturing these tubes is anything but easy. Every bend must be accurate and consistent, while the tube must keep its shape and wall thickness throughout the process. That's exactly what a serpentine tube bending machine is designed to do.
Although they look simple, manufacturing these tubes is anything but easy. Every bend must be accurate and consistent, while the tube must keep its shape and wall thickness throughout the process. That's exactly what a serpentine tube bending machine is designed to do.
What Is a Serpentine Tube Bending Machine?

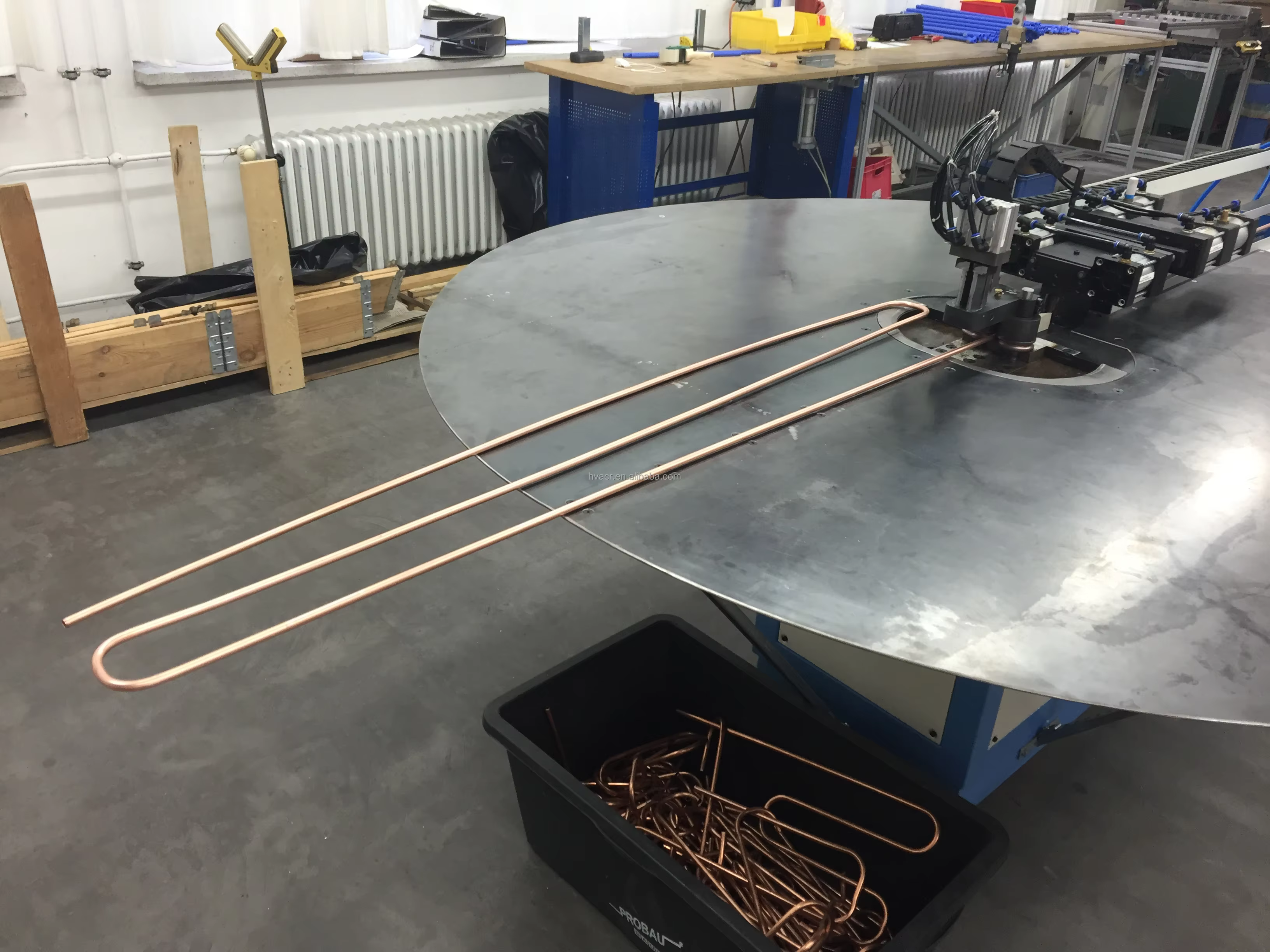

A serpentine tube bender is a CNC tube bending machine specially developed for producing continuous left-and-right bends in a single cycle.
Unlike a standard tube bender, there's no need to stop, rotate, or reposition the tube after every bend. The machine automatically completes the entire bending sequence, improving efficiency while maintaining excellent accuracy.
With the combination of servo control, hydraulic power, and an intelligent CNC system, the machine can automatically feed, clamp, bend, and index the tube. The result is faster production, stable quality, and less manual work.
Unlike a standard tube bender, there's no need to stop, rotate, or reposition the tube after every bend. The machine automatically completes the entire bending sequence, improving efficiency while maintaining excellent accuracy.
With the combination of servo control, hydraulic power, and an intelligent CNC system, the machine can automatically feed, clamp, bend, and index the tube. The result is faster production, stable quality, and less manual work.
Why Axial Push Bending Matters
One of the key technologies behind high-quality serpentine bending is axial push bending.
During bending, the machine applies a controlled forward force to the tube. This pushes material into the bending area, helping maintain a more even wall thickness while reducing wrinkles, cracks, and excessive thinning.
The result is a smoother bend with better structural strength, especially when producing tight-radius coils.
During bending, the machine applies a controlled forward force to the tube. This pushes material into the bending area, helping maintain a more even wall thickness while reducing wrinkles, cracks, and excessive thinning.
The result is a smoother bend with better structural strength, especially when producing tight-radius coils.
Where Are Serpentine Tubes Used?
Serpentine tubes are widely used across many industries because of their excellent heat transfer performance.
In power plants, they are commonly found in boiler superheaters and reheaters, where they operate under high temperatures and constant thermal cycling.
In the chemical and petrochemical industries, they are used as heat exchanger coils to handle high-pressure or corrosive fluids.
They are also essential components in HVAC and refrigeration equipment, serving as condenser and evaporator coils that make heating and cooling systems work efficiently.
Because these applications often operate under demanding conditions, the quality of every bend directly affects system performance, reliability, and service life.
In power plants, they are commonly found in boiler superheaters and reheaters, where they operate under high temperatures and constant thermal cycling.
In the chemical and petrochemical industries, they are used as heat exchanger coils to handle high-pressure or corrosive fluids.
They are also essential components in HVAC and refrigeration equipment, serving as condenser and evaporator coils that make heating and cooling systems work efficiently.
Because these applications often operate under demanding conditions, the quality of every bend directly affects system performance, reliability, and service life.
Why Choose Huashun?
With more than 20 years of experience in tube processing equipment, Huashun focuses on building machines that deliver reliable performance in real production environments.
High Bending Accuracy
Our CNC control system uses encoder feedback to precisely control bending angle and tube rotation, achieving accuracy of up to ±0.1°. This helps reduce measurement time, rework, and production errors.
Flexible Production
Different products require different bending programs. Huashun machines can store hundreds of programs, with up to 16 bend angles in each program, making it easy to switch between different production tasks.
Stable Axial Push Technology
Our optimized push-bending system automatically matches the pushing force with the bending speed. This ensures smooth bends even when producing small-radius coils and helps maintain excellent tube quality.
Wide Material Compatibility
Huashun serpentine benders are suitable for carbon steel, stainless steel, copper, aluminum, and other materials. They can also process round, square, and rectangular tubes, giving manufacturers greater flexibility.
Built for Different Industries
Whether you're manufacturing boiler tubes for power plants, heat exchanger coils for chemical equipment, or condenser coils for refrigeration systems, Huashun serpentine tube benders are designed to meet your production needs.
They combine high efficiency, reliable accuracy, and durable performance, making them suitable for both large-scale production and customized manufacturing.
They combine high efficiency, reliable accuracy, and durable performance, making them suitable for both large-scale production and customized manufacturing.
Final Thoughts
Producing high-quality serpentine tubes requires more than simply bending metal. It requires precise control, reliable equipment, and a machine that can maintain consistency throughout every production cycle.
With over two decades of experience in tube processing technology, Huashun has developed serpentine tube bending machines that help manufacturers improve efficiency, reduce defects, and produce high-quality tubes with confidence.
If you're looking for a reliable solution for boiler tubes, heat exchangers, or refrigeration coil production, Huashun is ready to help.
With over two decades of experience in tube processing technology, Huashun has developed serpentine tube bending machines that help manufacturers improve efficiency, reduce defects, and produce high-quality tubes with confidence.
If you're looking for a reliable solution for boiler tubes, heat exchangers, or refrigeration coil production, Huashun is ready to help.
Huashun Machinery – Tube Processing, Simplified.
