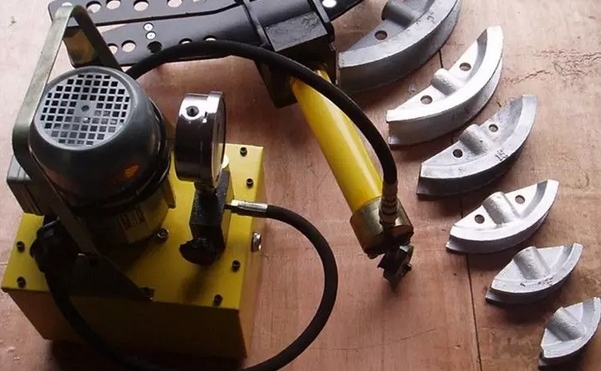

Bender hydraulic pipeline common failures and solutions

1. Leaks in Hydraulic Pipes

Possible Causes:

• Loose fittings: Over time, hydraulic fittings may become loose due to vibrations or improper tightening during installation.
• Worn seals: Seals on fittings, flanges, or connections can wear out, leading to leakage.
• Corrosion or rust: Hydraulic pipes exposed to moisture or chemicals can corrode, weakening the pipe and causing leaks.
• Damaged pipes: Physical damage from external forces or improper handling can crack or puncture the pipeline.

Solutions:

• Tighten fittings: Ensure all connections are securely tightened using the correct torque. Avoid overtightening, as it can damage the threads or fittings.
• Replace worn seals: Inspect all seals and O-rings for wear, replacing them as needed.
• Inspect for corrosion: Regularly inspect for rust or corrosion, and replace any affected pipes. Use corrosion-resistant materials if necessary.
• Inspect for external damage: Check for physical damage to the pipeline. Replace or repair damaged pipes immediately.

2. Clogs or Blockages

Possible Causes:

• Debris in the system: Dirt, metal shavings, or other debris can enter the pipeline, especially if filters are not properly maintained.
• Improper fluid filtration: A clogged filter or a lack of a filtration system can allow contaminants to build up in the system, eventually causing blockages in the pipeline.
• Seal degradation: Broken or degraded seals can release debris into the pipeline.

Solutions:

• Clean the system: Flush the system regularly to remove debris and contaminants. Ensure that the filtration system is functioning properly.
• Maintain filters: Regularly replace or clean filters to avoid blockages from contaminants.
• Inspect seals: Replace any degraded seals that might allow contaminants to enter the system.

3. Pressure Loss or Inconsistent Pressure

Possible Causes:

• Leaks: Even small leaks in the pipeline can cause pressure drops in the system.
• Internal wear of components: Worn-out internal components, such as valves or regulators, can cause pressure inconsistencies.
• Obstructions: Partial blockages in the pipeline can restrict fluid flow, causing pressure to fluctuate.
• Improper pipeline design: Incorrectly sized or routed pipelines can lead to excessive pressure drop due to resistance.

Solutions:

• Check for leaks: Inspect the entire pipeline for any signs of leaks, no matter how small, and repair them.
• Inspect internal components: Regularly check the valves, pressure relief systems, and regulators for wear or malfunction and replace them as needed.
• Clear any obstructions: Clean the pipelines and replace any worn or degraded parts that could cause internal blockages.
• Review system design: Ensure that the pipeline system is appropriately designed for the expected flow rate and pressure. Consider adjusting pipe sizes or layout if necessary.

4. Hydraulic Fluid Contamination

Possible Causes:

• Inadequate filtration: If the system lacks proper filtration, particles can contaminate the hydraulic fluid and lead to pipeline clogging.
• External contamination: Dust, water, or other contaminants can enter the system through damaged seals or during maintenance.
• Overheated fluid: High temperatures can break down hydraulic fluid, leading to sludge formation and pipeline contamination.

Solutions:

• Improve filtration: Ensure that the filtration system is sufficient for the type of hydraulic fluid being used. Change filters regularly.
• Seal integrity: Maintain proper seals on all openings, including the tank, connections, and pumps, to prevent contaminants from entering the system.
• Monitor fluid temperature: Ensure that the hydraulic fluid is within the recommended temperature range to prevent degradation. Use cooling systems if needed.

5. Vibration and Noise

Possible Causes:

• Improperly secured pipeline: If the hydraulic pipeline is not properly secured, it can vibrate, leading to noise and potentially damaging other components.
• Flow restrictions: Narrow or blocked pipes can cause turbulence and increased pressure drop, which can lead to noise and vibration.
• Pump issues: A malfunctioning pump or misalignment can cause excessive vibrations transmitted through the pipeline.

Solutions:

• Secure the pipeline: Use proper supports and brackets to secure the pipeline in place. Ensure there is no excessive movement that could cause vibration.
• Check for flow restrictions: Inspect the pipeline for any restrictions, bends, or kinks that could cause flow turbulence. Replace damaged or restricted sections.
• Check pump alignment: Ensure the pump is properly aligned and functioning. Misalignment or wear on the pump can cause vibrations that affect the entire system.

6. Expansion and Contraction of Pipes

Possible Causes:

• Temperature fluctuations: Hydraulic pipes can expand or contract with temperature changes, potentially causing stress on joints and fittings, leading to leaks or ruptures.
• Poor pipe material choice: Some materials may not be suitable for temperature extremes or for high-pressure environments, leading to failure over time.

Solutions:

• Use expansion joints: Install expansion joints or flexible hoses in the pipeline to allow for thermal expansion and contraction.
• Choose the right material: Select pipeline materials designed for the operating temperature and pressure conditions. Stainless steel or other corrosion-resistant alloys are often good choices for temperature-sensitive applications.

7. Pipe Fatigue or Fractures

Possible Causes:

• High pressure cycling: Repeated high-pressure cycling can cause fatigue in the pipeline, leading to cracks or fractures.
• Improper installation: If the pipeline is installed under stress (e.g., twisted or bent), it can develop fractures over time.

Solutions:

• Avoid pressure cycling: Design the system to minimize excessive pressure fluctuations or spikes that can cause fatigue.
• Proper installation: Ensure that the pipeline is installed with adequate support, with no unnecessary bends or twists.
